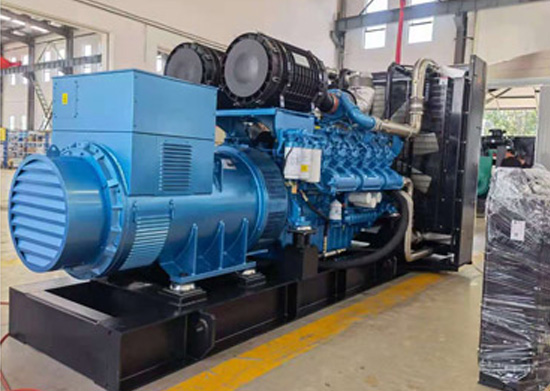

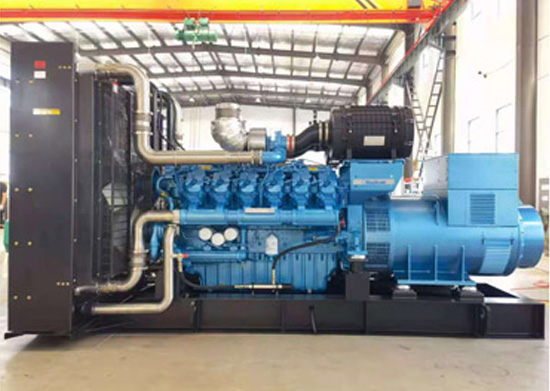

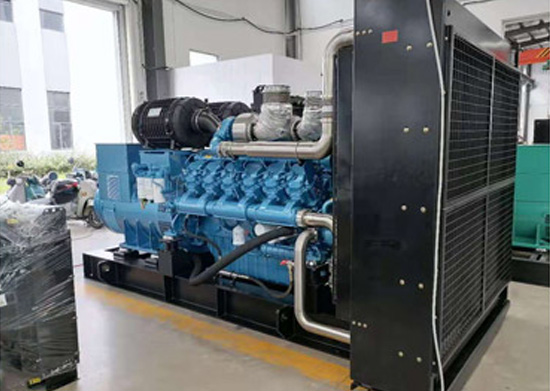

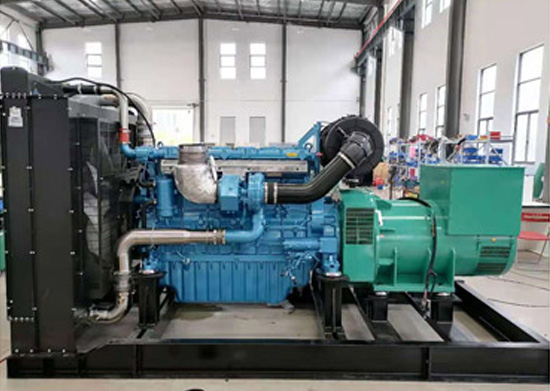

Weichai generator set

The power range of Weichai land diesel generator set is 10-3300kW, and the set uses engines independently developed and produced by Weichai Group, equipped with well-known brand generators. Each series of diesel generator sets has excellent performance, advanced technology, reliable operation, convenient maintenance, and focuses on humanized services in various markets. They have high voltage regulation accuracy, good dynamic performance, beautiful appearance, compact structure, reliable operation, long service life, low fuel consumption, low noise, low emissions, and strong environmental adaptability, which better meet the requirements of various markets for electricity.

Instructions for use:
1. The standard technical parameters of the unit are 50Hz, rated voltage 400/230V, power factor 0.8. The wiring method is three-phase four wire. The generator is selected from well-known brands such as Stanford, Leysinma, and Marathon.
2. Customizable 60Hz, medium and high voltage (690V, 6000V, 10500V).

CONTACT

Related Products

Unit model	Power				Diesel engine model	Diesel engine power		Unit size （mm）	Weight（kg）
	Commonly used		Spare			Commonly used	Spare
	Kva	Kw	Kva	Kw		Kw	Kw
TNKW20Z	25	20	27.5	22	WP2.3D25E200	23	25	15137231058	576
TNKW25Z	31.25	25	34.37	27.5	WP2.3D33E200	30	33	15137231058	606
TNKW30Z	37.5	30	41.25	33	WP2.3D40E200	36	40	15727571058	672
TNKW40Z	50	40	55	44	WP2.3D48E200	44	48	15727571058	700
TNKW50Z	62.5	50	68.75	55	WP4.1D66E200	60	66	19306801218	925
TNKW64Z	80	64	88	70.4	WP4.1D80E200	72	80	19308601218	995
TNKW100B	----	----	125	100	WP4.1D113E200	----	113	19308601218	1040
TNKW100Z	125	100	137.5	110	WP6D132E200	120	132	24758601451	1600
TNKW120Z	150	120	165	132	WP6D152E200	138	152	24758601451	1650
TNKW140Z	175	140	192.5	154	WP6D167E200	152	167	24758601451	1700
TNKW150Z	187.5	150	206.25	165	WP10D200E200	182	200	298011701780	2150
TNKW200Z	250	200	275	220	WP10D238E200	216	238	298011701780	2250
TNKW220Z	275	220	302.5	242	WP10D264E200	240	264	298011701780	2350
TNKW280B	----	----	350	280	WP10D320E200	----	320	298011701780	2450
TNKW300B	----	----	375	300	WP12D353E200	----	353	320013451885	2950
TNKW300Z	375	300	412.5	330	WP13D385E200	350	385	320013451885	3010
TNKW350B	----	----	437.5	350	WP13D405E200	----	405	320013451885	3110
TNKW500Z	625	500	687.5	550	6M33D633E200	575	633	385016802100	5200
TNKW600B	----	----	750	600	6M33D670E200	----	670	385016802100	5200
TNKW650Z	812.5	650	893.75	715	8M33D800E200	730	800	403018712130	6900
TNKW800B	----	----	1000	800	8M33D890E200	----	890	403018712130	6900
TNKW650Z	812.5	650	893.75	715	12M26D792E200	720	792	460021002350	7500
TNKW750Z	937.5	750	1031.25	825	12M26D902E200	820	902	460021002350	7600
TNKW800Z	1000	800	1100	880	12M26D968E200	880	968	460021002350	7700
TNKW900Z	1125	900	1237.5	990	12M33D1108E200	1007	1108	480022002450	8400
TNKW1100Z	1375	1100	1512.5	1210	12M33D1210E200	1100	1210	480022002450	8500
TNKW1100B	----	----	1375	1100	12M33D1320E200	----	1320	480022002450	8600
TNKW15Z	18.75	15	20.63	16.5	WP3.2D20E310	18	20	14587231058	555
TNKW20Z	25	20	27.5	22	WP3.2D28E310	25	27.5	15137231058	576
TNKW30Z	37.5	30	41.25	33	WP3.2D36E310	33	36.3	15137231058	606
TNKW32Z	40	32	44	35.2	WP3.2D44E310	36.8	44	15727571058	672
TNKW50Z	62.5	50	68.75	55	WP4.1D66E310	60	66	19306801218	925
TNKW65Z	81.25	65	89.375	71.5	WP4.1D84E310	74.5	82	19308601218	995
TNKW80B	----	----	100	80	WP4.1D105E310	----	105	19308601218	1040
TNKW80Z	100	80	110	88	WP4.6ND120E310	100	120	193010381552	1100
TNKW100Z	125	100	137.5	110	WP4.6ND138E310	125	138	193010381552	1180
TNKW120Z	150	120	165	132	WP4.6ND148E310A	135	148	193010381552	1270
TNKW150Z	187.5	150	206.25	165	WP7D185E310	168	185	266811651507	1891
TNKW150Z	187.5	150	206.25	165	WP7D240E310	218	240	266811651507	2061
TNKW200Z	250	200	275	220	WP7D264E310	235	264	266811651507	2231
TNKW220Z	275	220	302.5	242	WP10D264E350	240	264	298011701780	2350
TNKW280B	----	----	350	280	WP10D320E350	----	320	298011701780	2630
TNKW300Z	375	300	412.5	330	WP13D385E310	350	385	320013451885	3010
TNKW400B	----	----	500	400	WP13D440E310	----	440	320013451885	3200
TNKW440B	----	----	550	440	WP13D490E310	----	490	320013451885	3220
TNKW500Z	625	500	687.5	550	6M33D633E310	575	633	385016802100	5200
TNKW650B	----	----	812.5	650	6M33D725E310	----	725	385016802100	5800
TNKW650Z	812.5	650	893.5	715	8M33D800E310	730	800	403018712130	6900
TNKW750Z	937.5	750	1031.25	825	8M33D895E310	815	895	403018712130	6900
TNKW800Z	1000	800	1100	880	8M33D975E310	890	975	403018712130	6900
TNKW800Z	1000	800	1100	880	12M33D968E310	880	968	480022002450	8100
TNKW900Z	1125	900	1237.5	990	12M33D1108E310	1007	1108	480022002450	8400
TNKW1000Z	1250	1000	1375	1100	12M33D1240E310	1130	1240	480022002450	8500
TNKW1100Z	1375	1100	1512.5	1210	12M33D1320E310	1200	1320	480022002450	8600
TNKW1350B	----	----	1687.5	1350	12M33D1500E310	----	1500	480022002450	8800
TNKW1300Z	1625	1300	1787.5	1430	16M33D1580E310	1430	1580	650027503058	15700
TNKW1400Z	1750	1400	1925	1540	16M33D1680E310	1530	1680	650027503058	15600
TNKW1500Z	1875	1500	2062.5	1650	16M33D1800E310	1680	1800	650027503058	16000
TNKW1750B	----	----	2187.5	1750	16M33D1980E310	----	1980	650027503058	16500
TNKW2000B	----	----	2500	2000	20M33D2210E310	----	2210	701026802980	18400
TNKW2200B	----	----	2750	2200	12M55D2450E310	----	2450	660026802980	22000
TNKW2400B	----	----	3000	2400	12M55D2700E310	----	2700	660026802980	22400
TNKW2500B	----	----	3125	2500	16M55D2750E310	----	2750	709030003580	25200
TNKW2600B	----	----	3250	2600	16M55D2900E310	----	2900	709030003580	25400
TNKW3000B	----	----	3750	3000	16M55D3300E310	----	3300	709030003580	25500
TNKW3300B	----	----	4125	3300	16M55D3600E310	----	3600	709030003580	26500
