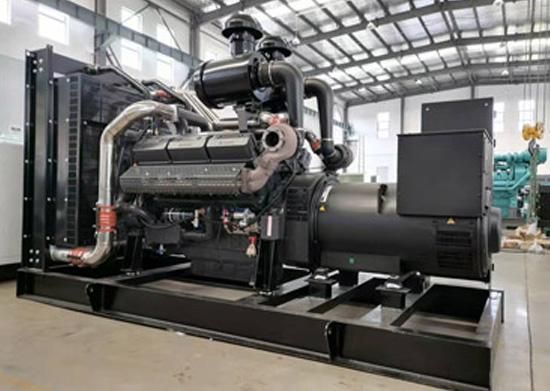

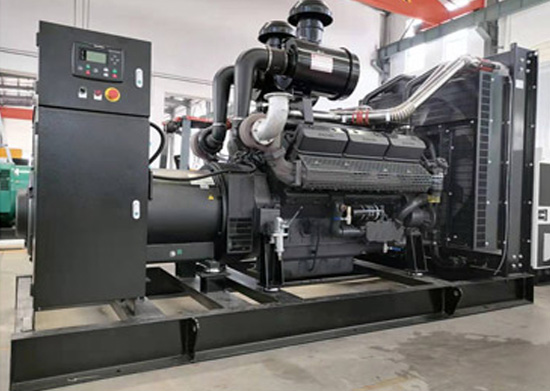

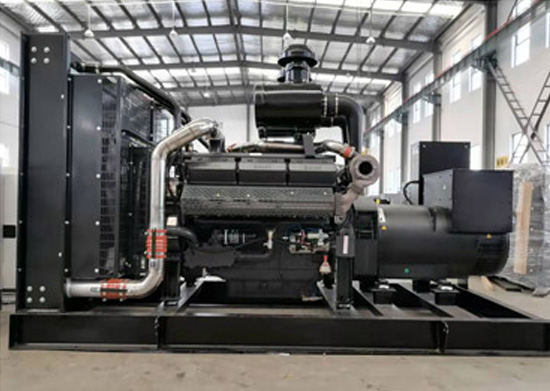

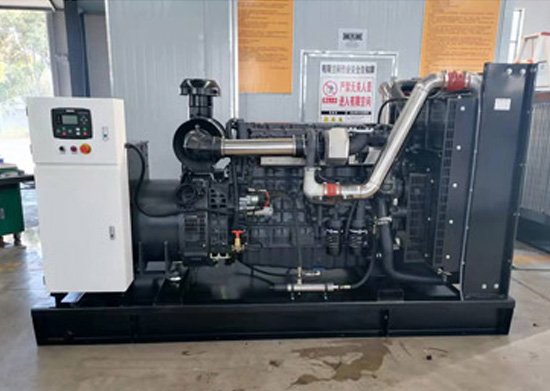

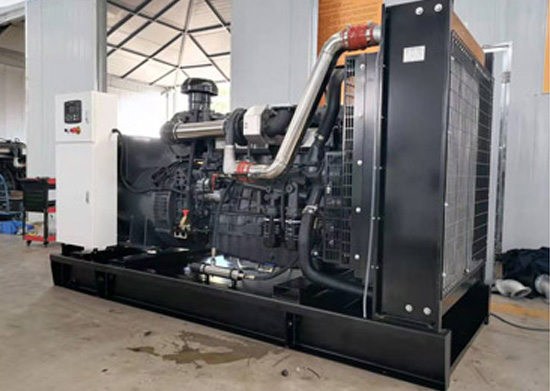

SDEC generator set

The Shangchai generator set is equipped with the 135 diesel engine, which is widely developed and used in China. Its technology is mature, spare parts are easy to purchase, and the power range is large. The product has excellent power, economy, and reliability. With simple supporting facilities and convenient maintenance, as well as a market holding of millions of units and a good after-sales service network, customers can truly avoid the worries of accessory supply and maintenance services. The SC series generator set diesel engine is an economical and efficient diesel engine specially developed based on the mature product of the D series produced and sold by the above diesel company, with an annual output and sales volume of over 80000 units. It has higher horsepower, stronger power, and lower emissions, making it an ideal supporting power for power plants.

Instructions for use:
1. The standard technical parameters of the unit are 50Hz, rated voltage 400/230V, power factor 0.8. The wiring method is three-phase four wire. The generator is selected from well-known brands such as Stanford, Leysinma, and Marathon.
2. Customizable 60Hz, medium and high voltage (690V, 6000V, 10500V).

CONTACT

Related Products

Unit model	Power				Diesel engine model	Diesel engine power		Unit size （mm）	Weight（kg）
	Commonly used		Spare			Commonly used	Spare
	Kva	Kw	Kva	Kw		Kw	Kw
TNKS12Z	15	12	16.5	13.2	4Z2.3-G11	16	18	13356001095	600
TNKS12Z	15	12	16.5	13.2	4Z2.3-G21	16	18	13356001095	600
TNKS20Z	25	20	27.5	22	4Z2.7-G11	22	24	13356001095	700
TNKS20Z	25	20	27.5	22	4Z2.7-G21	22	24	13356001095	700
TNKS22Z	27.5	22	30.25	24.2	4Z3.0-G11	27	30	13356001095	750
TNKS22Z	27.5	22	30.25	24.2	4Z3.0-G21	27	30	13356001095	750
TNKS18Z	22.5	18	24.75	19.8	4Z3.2-G11	32	35	13356001095	750
TNKS18Z	22.5	18	24.75	19.8	4Z3.2-G21	32	35	13356001095	750
TNKS35Z	43.75	35	48.13	38.5	4ZT3.2-G11	39	44	15006001095	700
TNKS35Z	43.75	35	48.13	38.5	4ZT3.2-G21	39	44	15006001095	700
TNKS40Z	50	40	55	44	4ZT3.5-G21	49	54	15006001095	700
TNKS50Z	62.5	50	68.75	55	4ZT4.1-G21	60	66	16006001095	750
TNKS55Z	68.75	55	75.63	60.5	4ZTAA4.1-G21	64	70	16006001095	750
TNKS64Z	80	64	88	70.4	4ZTAA4.1-G31	74	81	16006001095	750
TNKS50Z	62.5	50	68.75	55	SC4H95D2	62	68	22007601380	1450
TNKS70Z	87.5	70	96.25	77	SC4H115D2	78	86	22007601380	1850
TNKS80Z	100	80	110	88	SC4H140D2	95	105	25008701340	1860
TNKS90Z	112.5	90	123.75	99	SC4H160D2	105	116	25008701340	1850
TNKS100Z	125	100	137.5	110	SC4H180D2	120	132	25008701340	1850
TNKS100Z	125	100	137.5	110	SC7H180D2	120	132	270010001500	2100
TNKS120Z	150	120	165	132	SC7H205D2	138	152	270010001500	2100
TNKS130Z	162.5	130	178.75	143	SC7H220D2	150	165	270010001500	2200
TNKS130Z	162.5	130	178.75	143	SC7H230D2	154	170	270010001500	2200
TNKS150Z	187.5	150	206.25	165	SC7H250D2	168	185	270010001500	2250
TNKS160Z	200	160	220	176	SC8D280D2	185	204	270010001500	2250
TNKS180Z	225	180	247.5	198	SC9D310D2	208	228	300010801700	2350
TNKS200Z	250	200	275	220	SC9D340D2	228	255	300010801700	2350
TNKS220Z	275	220	302.5	242	SC10E380D2	255	280	286011051650	2500
TNKS250Z	312.5	250	343.75	275	SC12E420D2	280	308	300010801550	2350
TNKS250Z	312.5	250	343.75	275	SC13G420D2	280	308	305012501800	2700
TNKS280Z	350	280	385	308	SC12E460D2	307	338	310012901800	3050
TNKS280Z	350	280	385	308	SC12E480D2	323	355	310012901800	3100
TNKS300Z	375	300	412.5	330	SC15G500D2	339	373	310012901800	3500
TNKS300Z	375	300	412.5	330	SC13E500D2	339	373	320013001800	3500
TNKS330Z	412.5	330	453.75	363	SC13E550D2	368	405	320013001800	3600
TNKS350Z	437.5	350	481.25	385	SC25G610D2	405	445	350015701980	3650
TNKS400Z	500	400	550	440	SC25G690D2	459	505	350015701980	3700
TNKS450Z	562.5	450	618.75	495	SC27G755D2	505	560	350015701980	4000
TNKS500Z	625	500	687.5	550	SC27G830D2	561	610	350015701980	4200
TNKS550Z	687.5	550	756.25	605	SC27G900D2	602	662	350015701980	4300
TNKS600Z	750	600	825	660	SC33W990D2	660	726	370015701980	5000
TNKS700Z	875	700	962.5	770	SC33W1150D2	782	860	370015701980	5100
TNKS8Z	10	8	11	8.8	3Z1.1-G42	10	11	13356001095	500
TNKS10Z	12.5	10	13.75	11	3ZT1.1-G42	12.8	14.1	13356001095	500
