Mobile power vehicles have the characteristics of beautiful design, light material, advanced equipment, complete functions, moderate price, safety, energy conservation, environmental protection, etc. They can provide emergency power independently for various operations and are one of the ideal special operation equipment. The power car adopts advanced manufacturing technology, selects high-quality raw materials and components, and is carefully arranged, optimized, designed and manufactured. Its performance is good and operation is convenient.

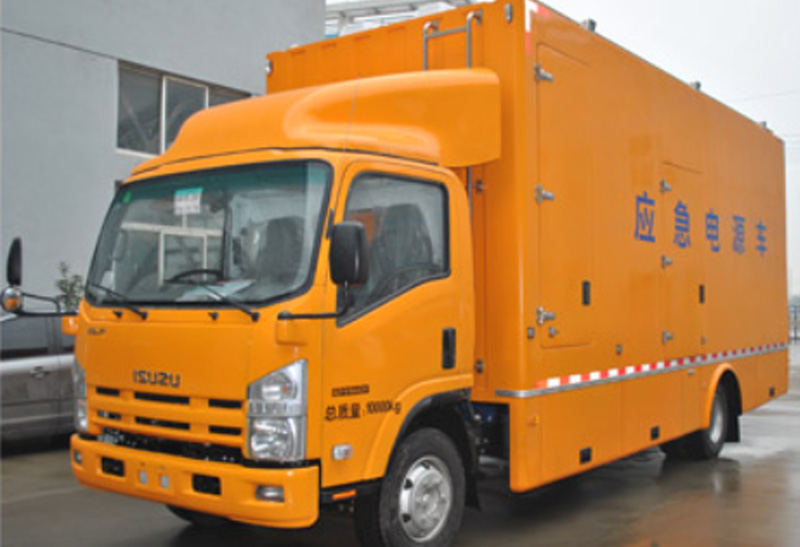

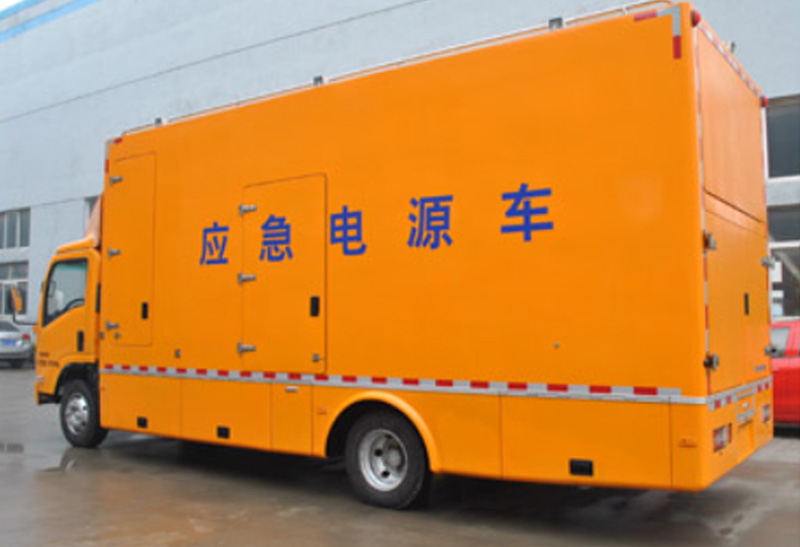

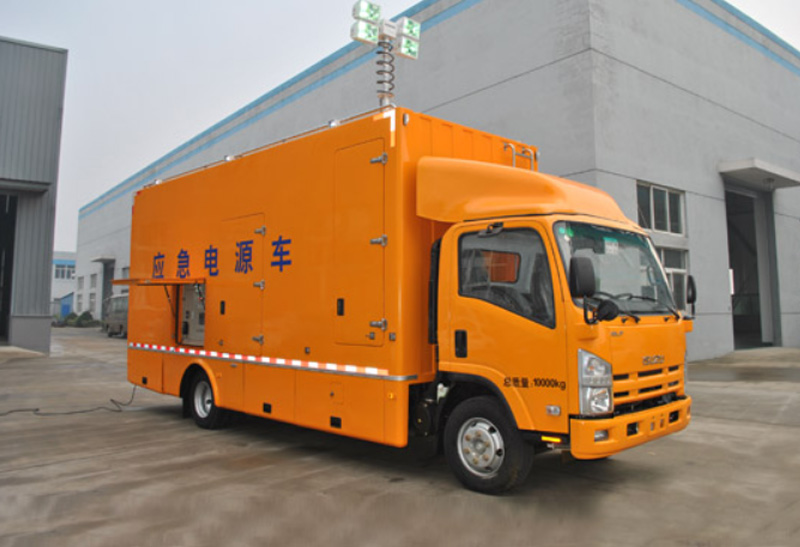

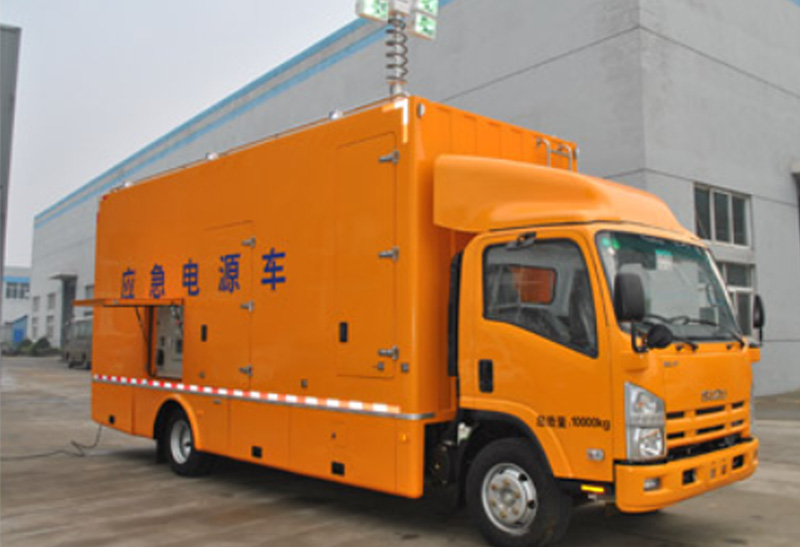

Vehicle mounted power supply vehicle
1. Adopting national catalog vehicle models for special design without changing the body shape and main body shape
2. Shock absorption and insulation devices are used between the generator set and the car chassis
3. According to environmental requirements, noise reduction treatment can be carried out on the carriage
4. Install an emergency stop button outside the carriage, and equip a fire extinguisher inside the carriage to ensure the safety of the power car
5. According to customer requirements, cable supports and cable reels can be added, equipped with four core rubber flexible cables and aviation fast sockets
6. Configure AC/DC lighting
7. There are mechanical or hydraulic support devices under the vehicle chassis for customers to choose from
Model | Concrete foundation plane(mm2) | Total area of computer room(mm2) | Small height of the computer room(mm) |
TPD-68GF | 2500×1000 | 4400×3300 | 3000 |
TPD-80GF | 2500×1000 | 2500×1000 | 3000 |
TPD-104GF | 2700×1000 | 4600×3300 | 3000 |
TPD-120GF | 2700×1000 | 4700×3300 | 3000 |
TPD-140GF | 3000×1200 | 4900×3300 | 3000 |
TPD-160GF | 3500×1200 | 5000×3300 | 3000 |
TPD-200GF | 3500×1500 | 5000×3300 | 3000 |
TPD-260GF TPD-300GF TPD-320GF | 4000×1500 | 6000×3300 | 3000 |
TPD-360GF TPD-400GF | 4000×1500 | 6000×3300 | 3000 |
Reference dimensions of domestic unit computer room
Model | Small height of the computer room(mm) | Notes |
Single 40-200KW 6-cylinder engine room | 5000×3600×3200 | 135series |
Two 40-200KW 6-cylinder engine rooms | 6000×5000×3500 | 135series |
Single 200-400KW 12 cylinder engine room | 6000×5000×3200 | 135series |
Two 200-400KW 12 cylinder engine rooms | 8000×6000×3500 | 135series |
Single (closed) 500-600KW machine room | 10000×7000×5000 | 8V190 |
Single (open) 500-600KW machine room | 9000×7000×5000 | 8V190 |
Single (closed) 700-1000KW machine room | 11000×8000×5500 | 12V190 |
Single (open) 700-1000KW machine room | 9000×8000×5500 | 12V190 |
