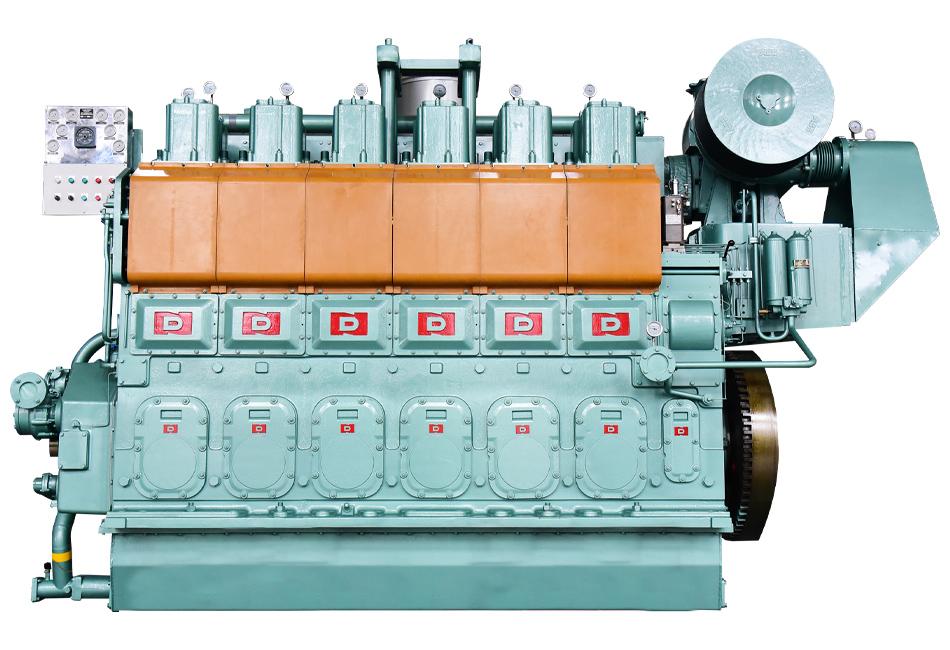

CSI Ningdong N300 Series Marine Diesel Engine

Marine engine products include diesel engines, dual-fuel engines and pure gas engines. Diesel engine main production models include N170, N210, NL210, DF210G, N230, N300, NL300, G300, GN320, DN320, DN330, DN340, NL340, NL340CR, NV32/40 series, power range from 184~9000KW, In line with the International Maritime Organization (IMO) Tier II, (IMO) Tier II I (plus SCR exhaust treatment device), GB15097 Marine diesel engine one, two stage emissions requirements, dual-fuel, pure gas products can be covered by a full range, It is widely used in fishing boats, inland and coastal transport ships, engineering vessels, ro-ro ships and various merchant ships as the main propulsion power and auxiliary machinery. The products can provide customized services according to the actual use conditions and needs of users, and can also be equipped with complete sets of equipment such as gear boxes, couplings and alarm protection devices according to user needs.

Standard and Optional Parts

Cooler: shell-and-tube heat exchanger (standard), plate heat exchanger (optional)

Turning gear: manual (standard), motor-driven (optional)

Governor: hydraulic governor (standard), E-H governor, electronic governor (optional)

Silencer: optional

Exhaust expansion joint: optional

CONTACT

Related Products

Item	Unit	Data
Type		Four-stroke, water-cooled, in-line, turbocharged and intercooled, direct injection
Bore×Stroke	mm	300×380
Number of Cylinders		6 / 8
Displacement	L	161.2 / 214.9
Compression Ratio		13.5 : 1
Speed	rpm	500 -750
SFOC	g/kW·h	≤182+5% (at 100% MCR) ≤180+5% (at 85% MCR)
SLOC	g/kW·h	≤0.6+20%
Starting Mode		Compressed-air motor
Direction of Rotation		Starboard engine: clockwise（aft. end） Port engine: anticlockwise（aft. end）
Minimum Height for Lifting Piston	mm	2600 (above crankshaft centerline)
Outline Dimensions Length×Width ×Height	mm	6 cylinders approx.: 5430×1640×3170 8 cylinders approx..: 6360×1640×3470
Net Weight	Kg	24800 / 30000

Model Portfolio Table

Series	Model		MCR kW/Ps	Speed rpm	MEP Mpa	Mean Piston Speed m/s	NOX Emission Standard
Series	Starboard	Port	MCR kW/Ps	Speed rpm	MEP Mpa	Mean Piston Speed m/s	NOX Emission Standard
N6300	N6300ZC6	N6300ZC7	1103/1500	500	1.643	6.33	IMO Tier II
	N6300ZC16	N6300ZC17	1470/2000	600	1.825	7.60	IMO Tier II
	N6300ZC18	N6300ZC19	1323/1800	550	1.79	6.97	IMO Tier II
	N6300ZC26	N6300ZC27	1470/2000	750	1.46	9.50	IMO Tier II
	N6300ZC28	N6300ZC29	1618/2200	750	1.64	9.50	IMO Tier II
	N6300ZC32	N6300ZC33	1765/2400	750	1.75	9.50	IMO Tier II
	N6300ZC36	N6300ZC37	1838/2500	750	1.83	9.50	IMO Tier II
	N6300ZC44	N6300ZC45	2000/2720	750	1.99	9.50	IMO Tier II
	N6300ZC48	N6300ZC49	2206/3000	750	2.19	9.50	IMO Tier II
	N6300ZC54	N6300ZC55	2100/2856	750	2.09	9.50	IMO Tier II
N8300	N8300ZC	N8300ZC1	1103/1500	500	1.232	6.33	IMO Tier II
	N8300ZC6	N8300ZC7	1618/2200	500	1.808	6.33	IMO Tier II
	N8300ZC8	N8300ZC9	1765/2400	550	1.791	6.97	IMO Tier II
	N8300ZC10	N8300ZC11	2000/2720	600	1.861	7.60	IMO Tier II
	N8300ZC12	N8300ZC13	2206/3000	600	2.053	7.60	IMO Tier II
	N8300ZC14	N8300ZC15	2354/3200	650	2.023	8.23	IMO Tier II
	N8300ZC16	N8300ZC17	2500/3400	650	2.149	8.23	IMO Tier II
	N8300ZC18	N8300ZC19	2794/3800	720	2.167	9.12	IMO Tier II
	N8300ZC20	N8300ZC21	2941/4000	750	2.19	9.50	IMO Tier II
	N8300ZC22	N8300ZC23	3089/4200	50	2.30	9.50	IMO Tier II

Remark: Product parameters and model portfolio are for reference only. Please contact the relevant personnel for official information on delivery time. The delivery scope for each model engine shall be performed as per the corresponding technical files.
