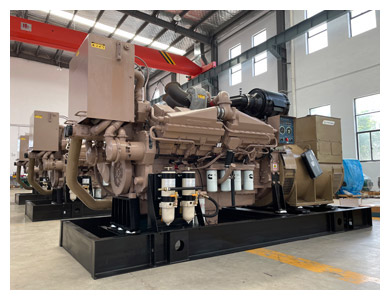

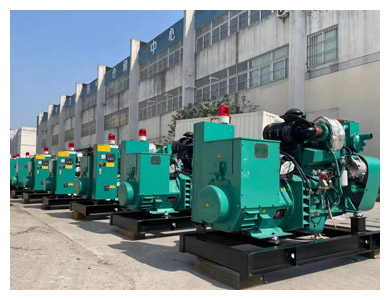

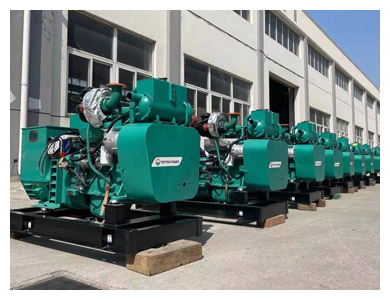

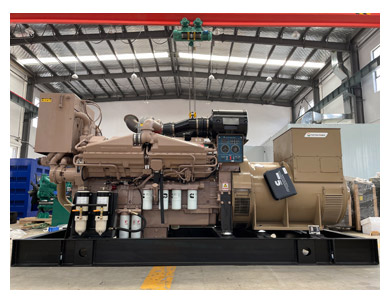

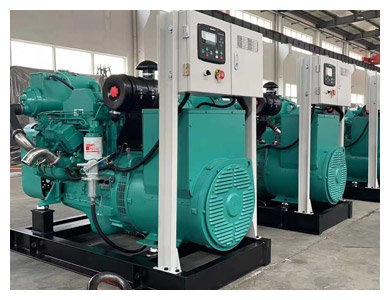

Cummins marine diesel generator set

The Cummins diesel generator set uses Dongfeng (DCEC)/Chongqing (CCEC) Cummins engines, which have high reliability, easy maintenance, long continuous operation time, and ultra long working hours, and have won the love of users in industries such as ports, railways, and industrial and mining enterprises. As a foreign investor in the Chinese engine industry, Cummins owns manufacturing companies such as Dongfeng Cummins Engine Co., Ltd. (producing B, C, and L series) and Chongqing Cummins Engine Co., Ltd. (producing M, N, and K series) in China, and produces according to Cummins quality standards. Cummins Global Service Network provides customers with reliable service guarantees.

Instructions for use:

1. The standard technical parameters of the unit are 50Hz, rated voltage 400/230V, power factor 0.8. The wiring method is three-phase four wire. The generator is selected from well-known brands such as Stanford, Leysinma, and Marathon.
2. Customizable 60Hz, medium and high voltage (690V, 6000V, 10500V).

CONTACT

Related Products

Unit model	Power				Diesel engine model	Diesel engine power		Unit size （mm）
	Commonly used		Spare			Commonly used	Spare
	Kva	Kw	Kva	Kw		Kw	Kw
TKD18Z	22.5	18	25	20	4B3.9-G11	20	22	15507351420
TKD22Z	27.5	22	30	24	4B3.9-G1	24	37.4	15507351420
TKD22Z	27.5	22	30	24	4B3.9-G2	24	37.4	15507351420
TKD25Z	31.3	25	34.4	27.5	4B3.9-G12	27	29.7	15507351420
TKD32Z	40	32	44	35.2	4BT3.9-G1	36	39.6	16807351420
TKD32Z	40	32	44	35.2	4BT3.9-G2	36	39.6	16807351420
TKD40Z	50	40	55	44	4BTA3.9-G2	50	55	18808051450
TKD50Z	62.5	50	68.75	55	4BTA3.9-G2	58	63.8	18808051450
TKD58Z	72.5	58	79.75	63.8	4BTA3.9-G11	70	77	21808051450
TKD80Z	100	80	110	88	4BTA3.9-G13	87	95.7	21808051450
TKD80Z	100	80	110	88	4BTAA3.9-G3	96	105.6	21808051450
TKD68Z	85	68	93.5	74.8	6BT5.9-G1	86	94.6	24758001470
TKD68Z	85	68	93.5	74.8	6BT5.9-G2	86	94.6	24758001470
TKD80Z	100	80	110	88	6BT5.9-G2	96	105.6	24758001470
TKD91Z	114	91.2	125.4	100.32	6BTA5.9-G2	106	116.6	26208001495
TKD100Z	125	100	137.5	110	6BTAA5.9-G2	120	132	26208001495
TKD120Z	150	120	165	132	6BTAA5.9-G12	140	154	26208001495
TKD140Z	175	140	192.5	154	6CTA8.3-G1	163	179.3	26808551560
TKD140Z	175	140	192.5	154	6CTA8.3-G2	163	179.3	26808551560
TKD160Z	200	160	220	176	6CTAA8.3-G2	183	201.3	279010451640
TKD200Z	250	200	275	220	6CTAA8.3-G9	231	254.1	279010451640
TKD200Z	250	200	275	220	6LTAA8.9-G2	220	242	289010801780
TKD200Z	250	200	275	220	6LTAA8.9-G3	230	253	289010801780
TKD220Z	275	220	302.5	242	6LTAA9.5-G3	250	275	330011501780
TKD250Z	312.5	250	343.75	275	6LTAA9.5-G1	290	319	330011501780
TKD300Z	375	300	412.5	330	6ZTAA13-G3	340	374	338013602010
TKD350Z	437.5	350	481.25	385	6ZTAA13-G2	390	429	338013602010
TKD350Z	437.5	350	481.25	385	6ZTAA13-G4	400	440	338013602010
TKD350Z	437.5	350	481.25	385	QSZ13-G2	400	440	339013602010
TKD400Z	500	400	550	440	QSZ13-G3	450	495	339013602010
TKD350Z	437.5	350	481.25	385	QSZ13-G5	411	452.1	339013602010
TKD400Z	500	400	550	440	QSZ13-G10	463	509.3	339013602010
TKD450Z	562.5	450	618.75	495	QSZ13-G11	512	563.2	339013602010
