CSI Ningdong DF210 Series Marine Diesel Engine

Marine engine products include diesel engines, dual-fuel engines and pure gas engines. Diesel engine main production models include N170, N210, NL210, DF210G, N230, N300, NL300, G300, GN320, DN320, DN330, DN340, NL340, NL340CR, NV32/40 series, power range from 184~9000KW, In line with the International Maritime Organization (IMO) Tier II, (IMO) Tier II I (plus SCR exhaust treatment device), GB15097 Marine diesel engine one, two stage emissions requirements, dual-fuel, pure gas products can be covered by a full range, It is widely used in fishing boats, inland and coastal transport ships, engineering vessels, ro-ro ships and various merchant ships as the main propulsion power and auxiliary machinery. The products can provide customized services according to the actual use conditions and needs of users, and can also be equipped with complete sets of equipment such as gear boxes, couplings and alarm protection devices according to user needs.

Standard and Optional Parts

Cooler: shell-and-tube heat exchanger (standard), plate heat exchanger (optional)

Turning gear: manual (standard), motor-driven (optional)

Governor: hydraulic governor (standard), E-H governor, electronic governor (optional)

Silencer: optional

Exhaust expansion joint: optional

CONTACT

Related Products

Item	Unit	Data
Type		Four-stroke, water-cooled, in-line, turbocharged and intercooled, direct injection
Bore×Stroke	mm	210×300
Number of Cylinders		6 / 8
Displacement	L	62.3 / 83.1
Compression Ratio		15 : 1
Speed	rpm	600 -1000
SFOC	g/kW·h	≤190+5% (during fuel mode)
SFGC	KJ/kW·h	≤9000 (at rated power)
SLOC	g/kW·h	≤0.6+20%
Gas Supply Pressure	bar	4 – 6
Substitution Rate		70 – 85% (at 50% – 100% rated power)
Starting Mode		Compressed-air motor
Direction of Rotation		Starboard engine: clockwise（aft. end） Port engine: anticlockwise（aft. end）
Minimum Height for Lifting Piston	mm	1650 (above crankshaft centerline)

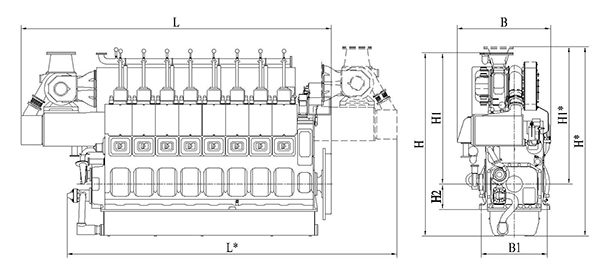

Outline Dimensions Length×Width ×Height	mm	6 cylinders approx.: 3710×1600×2580 8 cylinders approx..: 4720×1415×2870
Net Weight	Kg	12500 / 15000

Model Portfolio Table

Series	Model		MCR kW/Ps	Speed rpm	MEP Mpa	Mean Piston Speed m/s	NOX Emission Standard
Series	Starboard	Port	MCR kW/Ps	Speed rpm	MEP Mpa	Mean Piston Speed m/s	NOX Emission Standard
DF6210	DF6210ZC	DF6210ZC1	396/539	600	1.27	6.0	IMO Tier II
	DF6210ZC2	DF6210ZC3	662/900	720	1.77	7.2	IMO Tier II
	DF6210ZC4	DF6210ZC5	662/900	750	1.70	7.5	IMO Tier II
	DF6210ZC10	DF6210ZC11	441/600	600	1.41	6.0	IMO Tier II
	DF6210ZC12	DF6210ZC13	551/750	750	1.42	7.5	IMO Tier II
	DF6210ZC14	DF6210ZC15	735/1000	830	1.71	8.3	IMO Tier II
	DF6210ZC16	DF6210ZC17	809/1100	900	1.73	9.0	IMO Tier II
	DF6210ZC18	DF6210ZC19	882/1200	1000	1.70	10.0	IMO Tier II
	DF6210ZC24	DF6210ZC25	610/830	720	1.64	7.2	IMO Tier II
	DF6210ZC26	DF6210ZC27	735/1000	1000	1.41	10.0	IMO Tier II
DF8210	DF8210ZC2	DF8210ZC3	588/800	600	1.415	6.0	IMO Tier II
	DF8210ZC8	DF8210ZC9	735/1000	750	1.415	7.5	IMO Tier II
	DF8210ZC28	DF8210ZC29	600/816	720	1.20	7.2	IMO Tier II
	DF8210ZC30	DF8210ZC31	662/900	720	1.33	7.2	IMO Tier II
	DF8210ZC38	DF8210ZC39	809/1100	750	1.56	7.5	IMO Tier II
	DF8210ZC46	DF8210ZC47	882/1200	830	1.53	8.3	IMO Tier II
	DF8210ZC50	DF8210ZC51	956/1300	900	1.53	9.0	IMO Tier II
	DF8210ZC54	DF8210ZC55	1029/1400	900	1.65	9.0	IMO Tier II
	DF8210ZC70	DF8210ZC71	1103/1500	1000	1.59	10.0	IMO Tier II
	DF8210ZC74	DF8210ZC75	1200/1632	1000	1.73	10.0	IMO Tier II

Remark: Product parameters and model portfolio are for reference only. Please contact the relevant personnel for official information on delivery time. The delivery scope for each model engine shall be performed as per the corresponding technical files.
