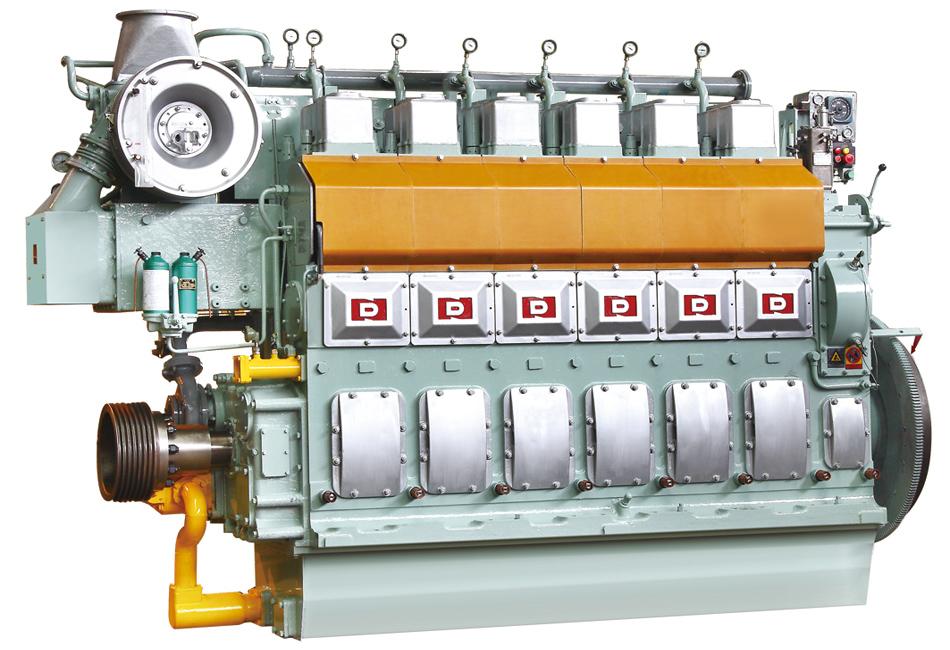

CSI Ningdong N210 Series Marine Diesel Engine

Marine engine products include diesel engines, dual-fuel engines and pure gas engines. Diesel engine main production models include N170, N210, NL210, DF210G, N230, N300, NL300, G300, GN320, DN320, DN330, DN340, NL340, NL340CR, NV32/40 series, power range from 184~9000KW, In line with the International Maritime Organization (IMO) Tier II, (IMO) Tier II I (plus SCR exhaust treatment device), GB15097 Marine diesel engine one, two stage emissions requirements, dual-fuel, pure gas products can be covered by a full range, It is widely used in fishing boats, inland and coastal transport ships, engineering vessels, ro-ro ships and various merchant ships as the main propulsion power and auxiliary machinery. The products can provide customized services according to the actual use conditions and needs of users, and can also be equipped with complete sets of equipment such as gear boxes, couplings and alarm protection devices according to user needs.

Standard and Optional Parts

Cooler: shell-and-tube heat exchanger (standard), plate heat exchanger (optional)

Turning gear: manual (standard), motor-driven (optional)

Governor: hydraulic governor (standard), E-H governor, electronic governor (optional)

Silencer: optional

Exhaust expansion joint: optional

CONTACT

Related Products

Item	Unit	Data
Type		Four-stroke, water-cooled, in-line, turbocharged and intercooled, direct injection
Bore×Stroke	mm	210×300
Number of Cylinders		6 / 8
Displacement	L	62.3 / 83.1
Compression Ratio		15 : 1 / 13 : 1
Speed	rpm	600 -1000
SFOC	g/kW·h	≤190+5% (at 100% MCR) ≤188+5% (at 85% MCR)
SLOC	g/kW·h	≤0.6+20%
Starting Mode		Compressed-air motor
Direction of Rotation		Starboard engine: clockwise（aft. end） Port engine: anticlockwise（aft. end）
Minimum Height for Lifting Piston	mm	1650 (above crankshaft centerline)

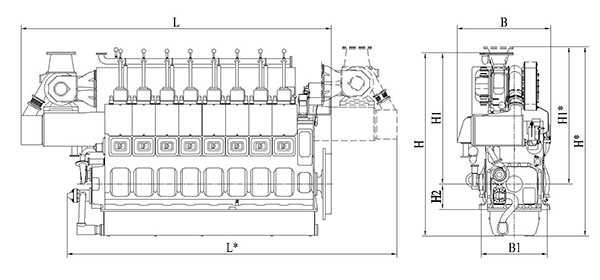

Outline Dimensions Length×Width ×Height	mm	6 cylinders approx.: 3750×1590×1940 8 cylinders approx..: 4720×1415×2870
Net Weight	Kg	12500 / 16500

Model Portfolio Table

Series	Model		MCR kW/Ps	Speed rpm	MEP Mpa	Mean Piston Speed m/s	NOX Emission Standard
Series	Starboard	Port	MCR kW/Ps	Speed rpm	MEP Mpa	Mean Piston Speed m/s	NOX Emission Standard
N6210	N6210ZC4	N6210ZC5	662/900	750	1.70	7.5	IMO Tier II
	N6210ZC8	N6210ZC9	1103/1500	1000	2.12	10.0	IMO Tier II
	N6210ZC12	N6210ZC13	551/749	750	1.42	7.5	IMO Tier II
	N6210ZC14	N6210ZC15	735/1000	830	1.71	8.3	IMO Tier II
	N6210ZC16	N6210ZC17	809/1100	900	1.73	9.0	IMO Tier II
	N6210ZC18	N6210ZC19	882/1200	1000	1.70	10.0	IMO Tier II
	N6210ZC20	N6210ZC21	956/1300	900	2.05	9.0	IMO Tier II
	N6210ZC22	N6210ZC23	1029/1400	1000	1.98	10.0	IMO Tier II
	N6210ZC26	N6210ZC27	374/509	600	1.20	6.0	IMO Tier II
	N6210ZC28	N6210ZC29	882/1200	900	1.89	9.0	IMO Tier II
N8210	N8210ZC2	N8210ZC3	588/800	600	1.415	6.0	IMO Tier II
	N8210ZC6	N8210ZC7	882/1200	720	1.769	7.2	IMO Tier II
	N8210ZC10	N8210ZC11	882/1200	750	1.698	7.5	IMO Tier II
	N8210ZC12	N8210ZC13	1000/1360	750	1.925	7.5	IMO Tier II
	N8210ZC14	N8210ZC15	1103/1500	750	2.124	7.5	IMO Tier II
	N8210ZC16	N8210ZC17	1000/1360	830	1.740	8.3	IMO Tier II
	N8210ZC18	N8210ZC19	11031500	830	1.919	8.3	IMO Tier II
	N8210ZC20	N8210ZC21	1323/1800	900	2.123	9.0	IMO Tier II
	N8210ZC22	N8210ZC23	1323/1800	1000	1.910	10.0	IMO Tier II
	N8210ZC24	N8210ZC25	1470/2000	1000	2.123	10.0	IMO Tier II

Remark: Product parameters and model portfolio are for reference only. Please contact the relevant personnel for official information on delivery time. The delivery scope for each model engine shall be performed as per the corresponding technical files.
