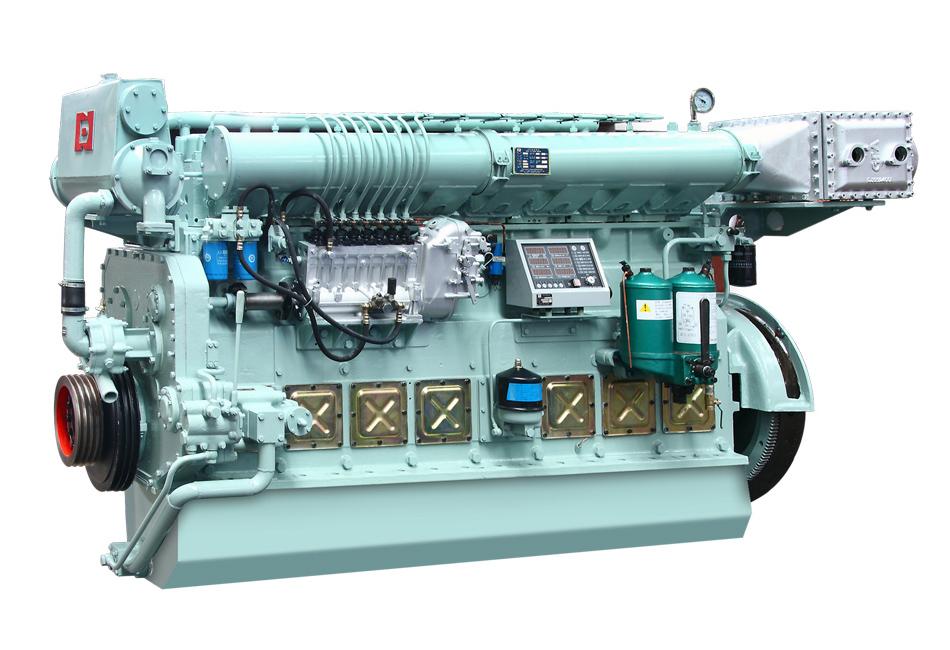

CSI Ningdong N170 Series Marine Diesel Engine

Marine engine products include diesel engines, dual-fuel engines and pure gas engines. Diesel engine main production models include N170, N210, NL210, DF210G, N230, N300, NL300, G300, GN320, DN320, DN330, DN340, NL340, NL340CR, NV32/40 series, power range from 184~9000KW, In line with the International Maritime Organization (IMO) Tier II, (IMO) Tier II I (plus SCR exhaust treatment device), GB15097 Marine diesel engine one, two stage emissions requirements, dual-fuel, pure gas products can be covered by a full range, It is widely used in fishing boats, inland and coastal transport ships, engineering vessels, ro-ro ships and various merchant ships as the main propulsion power and auxiliary machinery. The products can provide customized services according to the actual use conditions and needs of users, and can also be equipped with complete sets of equipment such as gear boxes, couplings and alarm protection devices according to user needs.

Standard and Optional Parts

Cooler: shell-and-tube heat exchanger (standard)

Governor: mechanical governor (standard), electronic governor (optional)

Silencer: optional

Exhaust expansion joint: optional

CONTACT

Related Products

Item	Unit	Data
Type		Four-stroke, water-cooled, in-line, turbocharged and intercooled, direct injection, non-reversible
Bore×Stroke	mm	170×200
Number of Cylinders		6 / 8
Displacement	L	27.22 / 36.29
Compression Ratio		14.5 : 1
Speed	rpm	1000 – 1500
SFOC	g/kW·h	≤194+3% (at 100% MCR) ≤192+3% (at 85% MCR)
SLOC	g/kW·h	≤0.7+20%
Starting Mode		Compressed-air motor or electric motor
Direction of Rotation		Starboard engine: clockwise（aft. end） Port engine: anticlockwise（aft. end）
Minimum Height for Lifting Piston	mm	1260 (above crankshaft centerline)
Outline Dimensions Length×Width ×Height	mm	6 cylinders: 2730×1320×1670 8 cylinders: 3180×1360×1680
Net Weight	Kg	3200 / 3800

Model Portfolio Table

Series	Model		MCR kW/Ps	Speed rpm	MEP Mpa	Mean Piston Speed m/s	NOX Emission Standard
Series	Starboard	Port	MCR kW/Ps	Speed rpm	MEP Mpa	Mean Piston Speed m/s	NOX Emission Standard
N6170	N6170ZLC1	NZ6170ZLC1	220/299	1000	0.97	6.67	IMO Tier II
	N6170ZLC2	NZ6170ZLC2	250/340	1000	1.02	6.67	IMO Tier II
	N6170ZLC6	NZ6170ZLC6	294/400	1200	1.080	8.0	IMO Tier II
	N6170ZLC8	NZ6170ZLC8	350/476	1200	1.286	8.0	IMO Tier II
	N6170ZLC9	NZ6170ZLC9	385/524	1200	1.414	8.0	IMO Tier II
	N6170ZLC10	NZ6170ZLC10	350/476	1350	1.157	9.0	IMO Tier II
	N6170ZLC12	NZ6170ZLC12	430/585	1350	1.404	9.0	IMO Tier II
	N6170ZLC14	NZ6170ZLC14	450/612	1500	1.323	10	IMO Tier II
	N6170ZLC15	NZ6170ZLC15	225/306	1200	0.827	8.0	IMO Tier II
	N6170ZLC16	NZ6170ZLC16	210/286	1000	0.926	6.67	IMO Tier II
N8170	N8170ZLC1	NZ8170ZLC1	441/600	1000	1.46	6.67	IMO Tier II
	N8170ZLC2	NZ8170ZLC2	480/653	1200	1.32	8.0	IMO Tier II
	N8170ZLC3	NZ8170ZLC3	540/734	1350	1.32	9.0	IMO Tier II
	N8170ZLC4	NZ8170ZLC4	600/816	1500	1.32	10	IMO Tier II
	N8170ZLC5	NZ8170ZLC5	480/653	1000	1.58	6.67	IMO Tier II
	N8170ZLC6	NZ8170ZLC6	529/719	1200	1.46	8.0	IMO Tier II
	N8170ZLC8	NZ8170ZLC8	575/782	1350	1.41	9.0	IMO Tier II
	N8170ZLC10	NZ8170ZLC10	350/476	1000	1.157	6.67	IMO Tier II
	N8170ZLC12	NZ8170ZLC12	400/544	1200	1.102	8.0	IMO Tier II
	N8170ZLC15	NZ8170ZLC15	500/680	1500	1.10	10	IMO Tier II
	N8170ZLC16	NZ8170ZLC16	440/598	1000	1.45	6.67	IMO Tier II

Remark: Product parameters and model portfolio are for reference only. Please contact the relevant personnel for official information on delivery time. The delivery scope for each model engine shall be performed as per the corresponding technical files.
