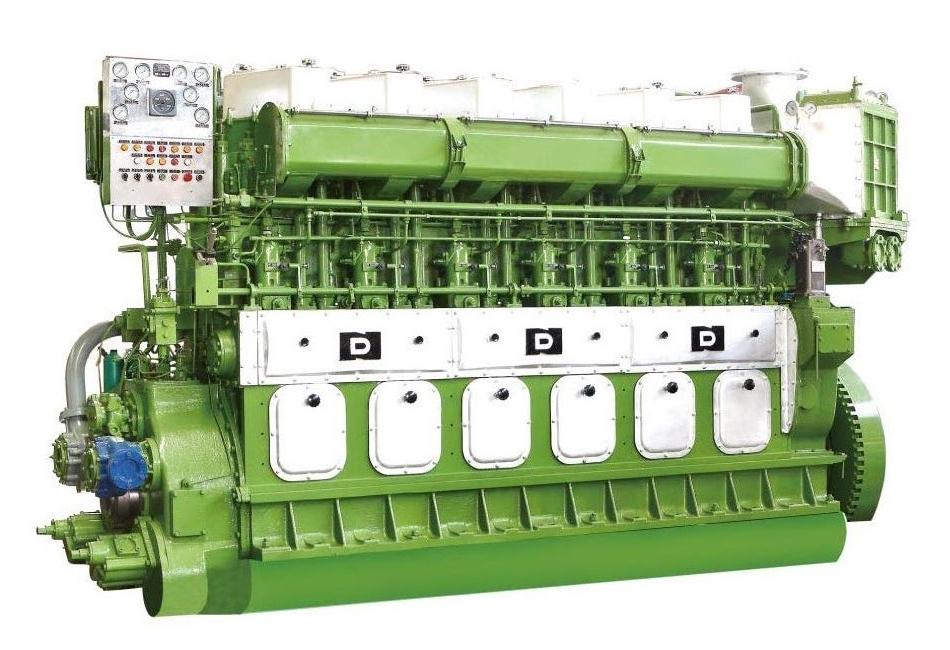

CSI Ningdong G300 Series Marine Diesel Engine

Marine engine products include diesel engines, dual-fuel engines and pure gas engines. Diesel engine main production models include N170, N210, NL210, DF210G, N230, N300, NL300, G300, GN320, DN320, DN330, DN340, NL340, NL340CR, NV32/40 series, power range from 184~9000KW, In line with the International Maritime Organization (IMO) Tier II, (IMO) Tier II I (plus SCR exhaust treatment device), GB15097 Marine diesel engine one, two stage emissions requirements, dual-fuel, pure gas products can be covered by a full range, It is widely used in fishing boats, inland and coastal transport ships, engineering vessels, ro-ro ships and various merchant ships as the main propulsion power and auxiliary machinery. The products can provide customized services according to the actual use conditions and needs of users, and can also be equipped with complete sets of equipment such as gear boxes, couplings and alarm protection devices according to user needs.

Standard and Optional Parts

Cooler: shell-and-tube heat exchanger (standard), plate heat exchanger (optional)

Turning gear: manual (standard), motor-driven (optional)

Governor: hydraulic governor (standard), E-H governor, electronic governor (optional)

Silencer: optional

Exhaust expansion joint: optional

CONTACT

Related Products

Item	Unit	Data
Type		Four-stroke, water-cooled, in-line, turbocharged and intercooled, direct injection
Bore×Stroke	mm	300×380
Number of Cylinders		6 / 8
Displacement	L	161 / 215
Compression Ratio		13 : 1
Speed	rpm	720 -1000
SFOC	g/kW·h	≤190+5% (at 100% MCR) ≤188+5% (at 85% MCR)
SLOC	g/kW·h	≤0.6+20%
Starting Mode		Compressed-air motor
Direction of Rotation		Starboard engine: clockwise（aft. end） Port engine: anticlockwise（aft. end）
Minimum Height for Lifting Piston	mm	2600 (above crankshaft centerline)

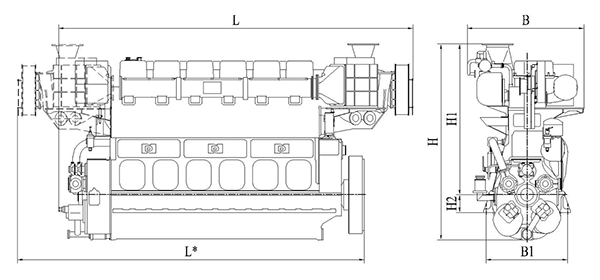

Outline Dimensions Length×Width ×Height	mm	6 cylinders approx.: 5020×1580×2780 8 cylinders approx..: 6030×1725×2940
Net Weight	Kg	17500 / 26000

Model Portfolio Table

Series	Model		MCR kW/Ps	Speed rpm	MEP Mpa	Mean Piston Speed m/s	NOX Emission Standard
Series	Starboard	Port	MCR kW/Ps	Speed rpm	MEP Mpa	Mean Piston Speed m/s	NOX Emission Standard
G6300	G6300ZCA	G6300ZCA1	735/1000	500	1.10	6.33	IMO Tier II
	G6300ZC6B	G6300ZC7B	1103/1500	500	1.65	6.33	IMO Tier II
	G6300ZC8B	G6300ZC9B	993/1350	500	1.48	6.33	IMO Tier II
	G6300ZC10B	G6300ZC11B	971/1320	428	1.69	5.42	IMO Tier II
	G6300ZC14B	G6300ZC15B	551/750	400	1.02	5.07	IMO Tier II
	G6300ZC16B	G6300ZC17B	1471/2000	600	1.825	7.6	IMO Tier II
	G6300ZC34B	G6300ZC35B	1800/2448	750	1.79	9.5	IMO Tier II
	G6300ZC38B	G6300ZC39B	1900/2584	750	1.89	9.5	IMO Tier II
	G6300ZC44B	G6300ZC45B	2000/2720	750	1.99	9.5	IMO Tier II
	G6300ZC48B	G6300ZC49B	2206/3000	750	2.19	9.5	IMO Tier II
G8300	G8300ZC6B	G8300ZC7B	1471/2000	500	1.65	6.33	IMO Tier II
	G8300ZC6BH	G8300ZC7BH	1500/2040	500	1.67	6.33	IMO Tier II
	G8300ZC16B	G8300ZC17B	2000/2720	600	1.86	7.60	IMO Tier II
	G8300ZC18B	G8300ZC19B	1765/2400	550	1.79	6.97	IMO Tier II
	G8300ZC20B	G8300ZC21B	1765/2400	500	1.97	6.33	IMO Tier II
	G8300ZC22B	G8300ZC23B	2000/2720	550	2.03	6.97	IMO Tier II
	G8300ZC30B	G8300ZC31B	2206/3000	600	2.05	7.60	IMO Tier II
	G8300ZC32B	G8300ZC33B	2427/3300	630	2.15	7.98	IMO Tier II
	G8300ZC34B	G8300ZC35B	2100/2856	630	1.89	7.98	IMO Tier II
	G8300ZC64B	G8300ZC65B	2648/3600	650	2.19	2.27	IMO Tier II

Remark: Product parameters and model portfolio are for reference only. Please contact the relevant personnel for official information on delivery time. The delivery scope for each model engine shall be performed as per the corresponding technical files.
