CSI Ningdong DN330 Series Marine Diesel Engine

Marine engine products include diesel engines, dual-fuel engines and pure gas engines. Diesel engine main production models include N170, N210, NL210, DF210G, N230, N300, NL300, G300, GN320, DN320, DN330, DN340, NL340, NL340CR, NV32/40 series, power range from 184~9000KW, In line with the International Maritime Organization (IMO) Tier II, (IMO) Tier II I (plus SCR exhaust treatment device), GB15097 Marine diesel engine one, two stage emissions requirements, dual-fuel, pure gas products can be covered by a full range, It is widely used in fishing boats, inland and coastal transport ships, engineering vessels, ro-ro ships and various merchant ships as the main propulsion power and auxiliary machinery. The products can provide customized services according to the actual use conditions and needs of users, and can also be equipped with complete sets of equipment such as gear boxes, couplings and alarm protection devices according to user needs.

Standard and Optional Parts

Cooler: shell-and-tube heat exchanger (standard), plate heat exchanger (optional)

Turning gear: motor-driven (standard)

Governor: hydraulic governor (standard), E-H governor, electronic governor (optional)

Silencer: optional

Exhaust expansion joint: optional

CONTACT

Related Products

Item	Unit	Data
Type		Four-stroke, water-cooled, in-line, turbocharged and intercooled, direct injection
Bore×Stroke	mm	330×450
Number of Cylinders		6 / 8
Displacement	L	230.9 / 307.8
Compression Ratio		13.5 : 1
Speed	rpm	550 -650
SFOC	g/kW·h	≤182+3% (at 100% MCR) ≤180+3% (at 85% MCR)
SLOC	g/kW·h	≤0.6+20%
Starting Mode		Compressed-air motor
Direction of Rotation		Starboard engine: clockwise（aft. end） Port engine: anticlockwise（aft. end）
Minimum Height for Lifting Piston	mm	2400 (above crankshaft centerline)

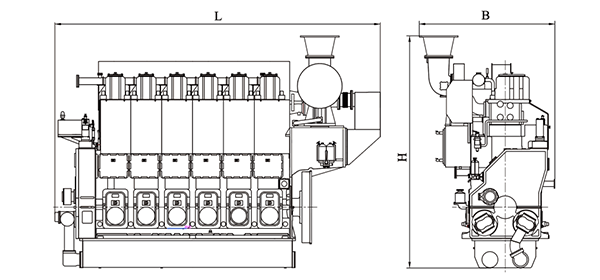

Outline Dimensions Length×Width ×Height	mm	6 cylinders approx.: 5435×2260×3880 8 cylinders approx..: 6825×1925×3795
Net Weight	Kg	37500 / 46500

Model Portfolio Table

Series	Model		MCR kW/Ps	Speed rpm	MEP Mpa	NOX Emission Standard (with SCR system)
Series	Starboard	Port	MCR kW/Ps	Speed rpm	MEP Mpa	NOX Emission Standard (with SCR system)
DN6330	DN6330ZC	DN6330ZC1	2206/3000	550	2.08	IMO Tier III
	DN6330ZC4	DN6330ZC4	2427/3300	600	2.10	IMO Tier III
	DN6330ZC6	DN6330ZC7	2648/3601	600	2.29	IMO Tier III
	DN6330ZC8	DN6330ZC9	2795/3801	600	2.42	IMO Tier III
	DN6330ZC10	DN6330ZC11	2206/3000	620	1.85	IMO Tier III
	DN6330ZC12	DN6330ZC13	2427/3300	620	2.03	IMO Tier III
	DN6330ZC14	DN6330ZC15	2574/3500	620	2.16	IMO Tier III
	DN6330ZC16	DN6330ZC17	2795/3801	650	2.23	IMO Tier III
	DN6330ZC18	DN6330ZC19	2970/4039	650	2.37	IMO Tier III
	DN6330ZC20	DN6330ZC21	2795/3801	620	2.34	IMO Tier III
DN8330	DN8330ZC	DN8330ZC1	3310/4502	620	2.08	IMO Tier III
	DN8330ZC2	DN8330ZC3	4045/5501	650	2.43	IMO Tier III
	DN8330ZC4	DN8330ZC5	3676/5000	650	2.20	IMO Tier III
	DN8330ZC6	DN8330ZC7	3000/4080	620	1.89	IMO Tier III
	DN8330ZC8	DN8330ZC9	2970/4039	620	1.87	IMO Tier III
	DN8330ZC10	DN8330ZC11	3089/4201	600	2.01	IMO Tier III
	DN8330ZC12	DN8330ZC13	3163/4302	600	2.05	IMO Tier III
	DN8330ZC16	DN8330ZC17	3310/4502	600	2.15	IMO Tier III
	DN8330ZC18	DN8330ZC19	3163/4302	620	1.99	IMO Tier III
	DN8330ZC20	DN8330ZC21	3552/4831	650	2.13	IMO Tier III

Remark: Product parameters and model portfolio are for reference only. Please contact the relevant personnel for official information on delivery time. The delivery scope for each model engine shall be performed as per the corresponding technical files.
