CSI Ningdong N210G Series Marine Gas Engine

Marine engine products include diesel engines, dual-fuel engines and pure gas engines. Diesel engine main production models include N170, N210, NL210, DF210G, N230, N300, NL300, G300, GN320, DN320, DN330, DN340, NL340, NL340CR, NV32/40 series, power range from 184~9000KW, In line with the International Maritime Organization (IMO) Tier II, (IMO) Tier II I (plus SCR exhaust treatment device), GB15097 Marine diesel engine one, two stage emissions requirements, dual-fuel, pure gas products can be covered by a full range, It is widely used in fishing boats, inland and coastal transport ships, engineering vessels, ro-ro ships and various merchant ships as the main propulsion power and auxiliary machinery. The products can provide customized services according to the actual use conditions and needs of users, and can also be equipped with complete sets of equipment such as gear boxes, couplings and alarm protection devices according to user needs.

Standard and Optional Parts

Cooler: shell-and-tube heat exchanger (standard), plate heat exchanger (optional)

Turning gear: manual (standard), motor-driven (optional)

Governor: hydraulic governor (standard), E-H governor, electronic governor (optional)

Silencer: optional

Exhaust expansion joint: optional

CONTACT

Related Products

Item	Unit	Technical Parameters
Type		Four-stroke, turbocharged, water-cooled, in-line, inlet multi-point injection, prechamber spark plug ignition
Bore×Stroke	mm	210×300
Number of Cylinders		6 / 8
Displacement	L	62.3 / 83.1
Compression Ratio		12.5 : 1
Speed	rpm	750 -1000
SFGC	KJ/kW·h	9000 (at rated power)
SLOC	g/kW·h	≤0.6+20%
Gas Supply Pressure	bar	5 – 8
Engine Thermal Efficiency		41.5%
Fuel Type		LNG or CNG
Direction of Rotation		Starboard engine: clockwise（aft. end） Port engine: anticlockwise（aft. end）
Minimum Height for Lifting Piston	mm	1650 (above crankshaft centerline)

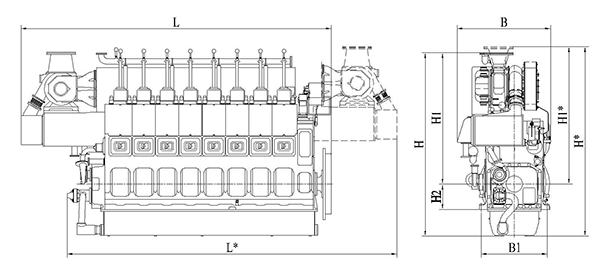

Outline Dimensions Length×Width ×Height	mm	6 cylinders: 3750×1590×2635 8 cylinders: 4685×1590×2890
Net Weight	Kg	12500 / 15000

Model Portfolio Table

Series	Model		MCR kW/Ps	Speed rpm	MEP Mpa	NOX Emission Standard
Series	Starboard	Port	MCR kW/Ps	Speed rpm	MEP Mpa	NOX Emission Standard
N6210G	N6210GZC	N6210GZC1	900/1224	1000	1.73	IMO Tier II / C2
	N6210GZC2	N6210GZC3	882/1200	1000	1.69	IMO Tier II / C2
	N6210GZC6	N6210GZC7	800/1088	900	1.73	IMO Tier II / C2
	N6210GZC10	N6210GZC11	735/1000	830	1.70	IMO Tier II / C2
	N6210GZC14	N6210GZC15	662/900	750	1.69	IMO Tier II / C2
	N6210GZC16	N6210GZC17	551/750	750	1.41	IMO Tier II / C2
N8210G	N8210GZC	N8210GZC1	1200/1632	1000	1.73	IMO Tier II / C2
	N8210GZC2	N8210GZC3	1103/1500	1000	1.59	IMO Tier II / C2
	N8210GZC4	N8210GZC5	1000/1360	1000	1.44	IMO Tier II / C2
	N8210GZC12	N8210GZC13	882/1200	830	1.53	IMO Tier II / C2
	N8210GZC14	N8210GZC15	735/1000	750	1.41	IMO Tier II / C2

Remark: Product parameters and model portfolio are for reference only. Please contact the relevant personnel for official information on delivery time. The delivery scope for each model engine shall be performed as per the corresponding technical files.
