Self suction diesel engine water pump unit-Self suction diesel engine water pump unit-Yangzhou Taikang Power Technology Co., Ltd.

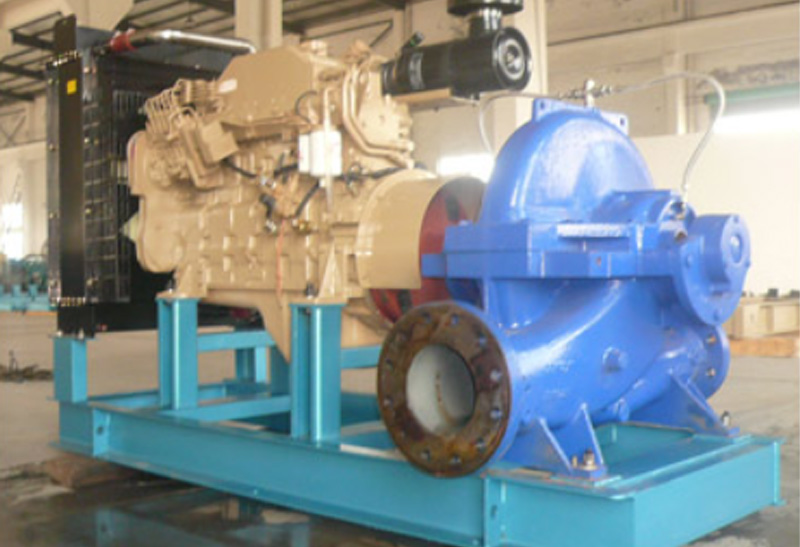

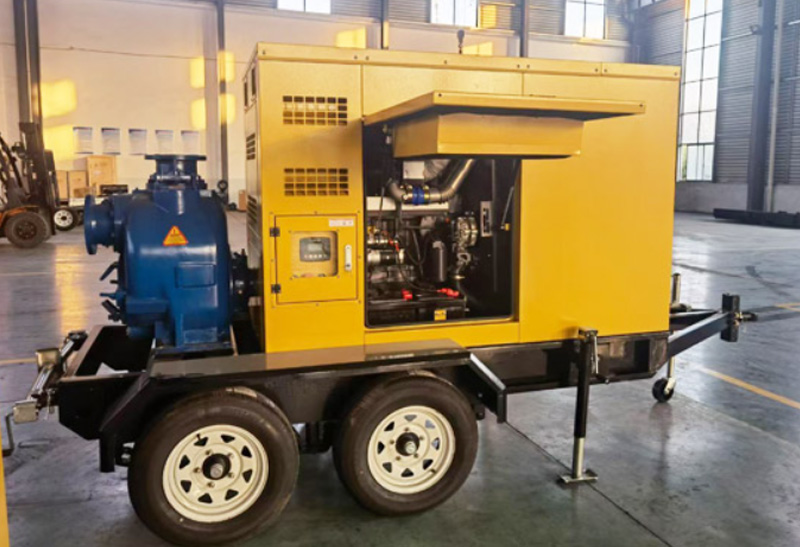

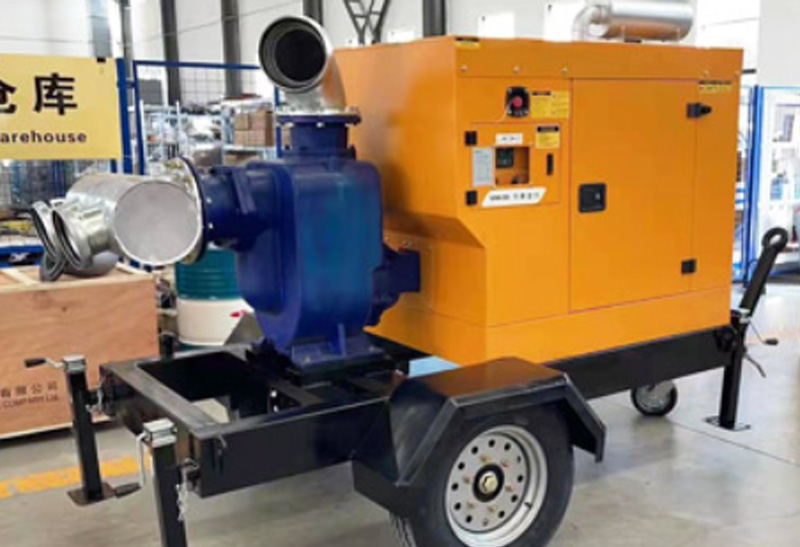

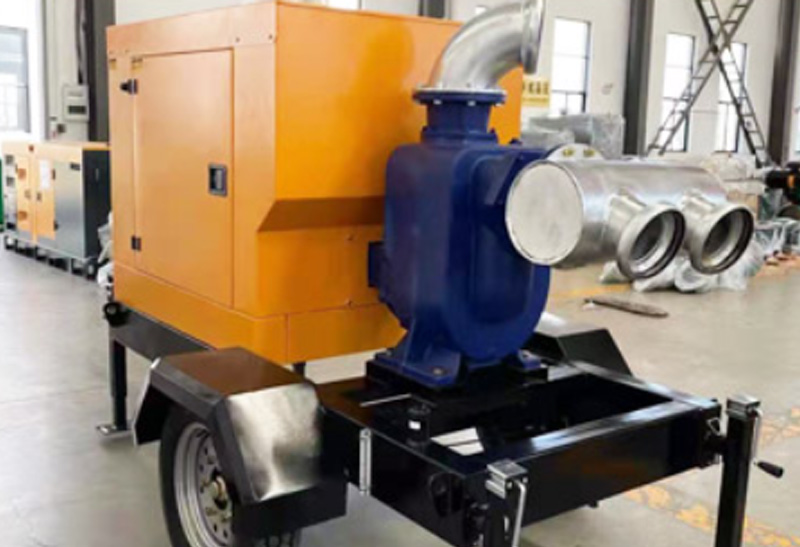

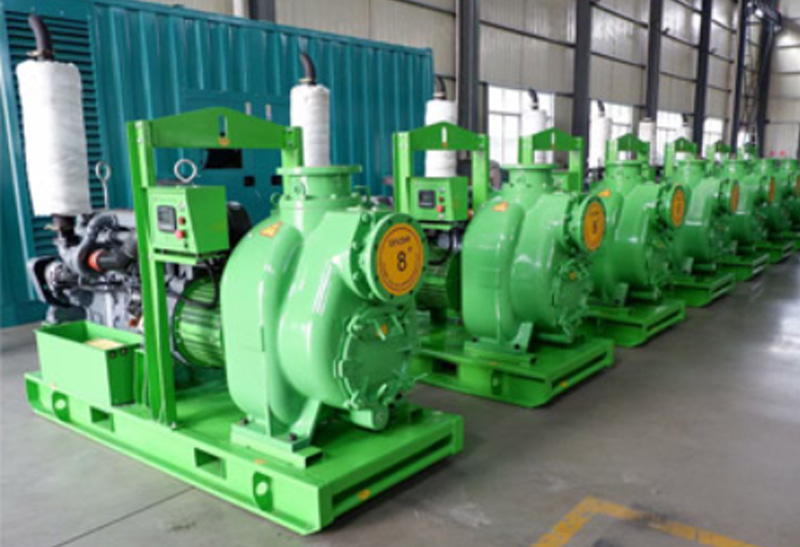

Self suction diesel engine water pump unit

The characteristics of the pump group are that the self suction centrifugal pump has the advantages of compact structure, convenient operation, smooth operation, easy maintenance, high efficiency, long service life, and strong self suction ability. The self priming pump pipeline has low requirements for the installation of the bottom valve. Before operation, it is only necessary to ensure that there is a fixed amount of liquid in the pump body.

CONTACT

Related Products

Model	Lmport caliber	Export caliber	Flow		Lift	Speed	Supporting power output
Model	mm	mm	m3/ h	L/S	m	rpm	> Kw
TPD-Z80-20	100	80	80	22	20	1490	9
TPD-Z100-15	100	80	100	28	15	1490	9
TPD-Z100-20	100	80	100	28	20	1490	13
TPD-Z120-20	125	125	120	33	20	1490	17
TPD-Z180-14	150	150	180	50	14	1490	17
TPD-Z150-20	150	150	180	50	38	1490	17
TPD-Z180-20	150	150	180	50	20	1490	25
TPD-Z180-30	150	150	180	50	30	1490	35
TPD-Z180-38	150	150	180	50	38	1490	63
TPD-Z280-12	200	150	280	78	12	1490	25
TPD-Z280-18	200	150	280	78	18	1490	43
TPD-Z300-25	200	150	300	83	25	1490	52
TPD-Z300-28	200	150	300	83	28	1490	63
TPD-Z420-20	250	200	420	117	20	1490	63
TPD-Z800-14	300	300	800	222	15	1490	63
TPD-Z1000-15	300	300	1000	278	15	1490	86
RT-Z1000-20	300	300	1000	278	20	1490	104
TPD-Z1000-30	300	300	1000	278	30	1490	152
TPD-Z1200-15	350	350	1200	333	15	1490	86
TPD-Z1200-20	350	350	1200	333	20	1490	127
TPD-Z1200-30	350	350	1200	333	30	1490	184
TPD-Z1500-15	350	350	1500	417	15	1490	104
TPD-Z1500-20	350	350	1500	417	20	1490	152
TPD-Z1500-30	350	350	1500	417	30	1490	230
TPD-Z1800-18	400	400	1800	500	18	1490	184
TPD-Z1800-30	400	400	1800	500	30	1490	322
TPD-Z2000-30	400	400	2000	556	30	1490	322
TPD-Z2200-28	400	400	2200	611	28	1490	322
